Scroller Pane

Image title

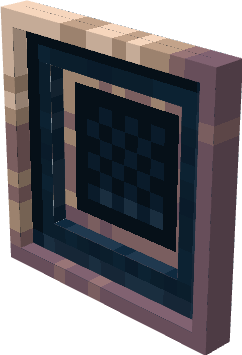

The Scroller Pane allows players to provide an input as an number within the world.

The peripheral uses Create's NumberBehaviour selection screen. (The same one like on the Rotational Speed Controller). The interface can be manipulated by holding right click (aka. interact) on the number and then moving the mouse cursor in the screen that opens up.

Example

In order to use it, a modem has to be attached on its back. That means either placing a full modem block and placing the Scroller Pane on it, or using a temporarily block, placing the Scroller Pane on that, removing the temporarily block and then using a normal modem on its back.

After that, we can start coding:

local scroller = peripheral.fid("scroller")

-- Let's lock it at the start to show
-- the player we are currently changing it, in this case.
scroller.setLocked(true)

-- If we have the minus spectrum enabled, half the limit.
local limit = scroller.hasMinusSpectrum() and 32 or 64

-- Apply the new limit.
-- If the minus spectrum is enabled, the limit will be from `-limit` to `limit`.
-- Otherwise it is from `0` to `limit`.
scroller.setLimit(limit)

scroller.setValue(32) -- Setting the current selected number.

sleep()
scroller.setLocked(false) -- We are done, give back player access

os.pullEvent("scroller_changed") -- Waiting until the player changes the value

Now, when we run this code, the scroller will first be locked, the limit and the default value will be changed and after that it gets unlocked again. The program however will wait until the Scroller Pane's value changes again.

You can play around with how it looks like with the minus spectrum being enabled or disabled again by putting this snippet in as well:

scroller.toggleMinusSpectrum(true)

Metadata
Peripheral v2
Attach name "scroller"
Attach side only "back"

Events

The Scroller Pane can send the following event:

Name Description Parameter 1 Parameter 2
"scroller_changed" Whenever the value got changed by a player. string: attached_name number: new_value

Functions

isLocked()

Returns whether the Scroller Pane is locked or not.

Returns

  1. boolean The state

setLock(state)

Unlocks the Scroller Pane with state = false (default) or locks it with state = true so that players cannot continue to use it.

Parameters

  1. state: boolean Wether the lock should be active or disabled.

getValue()

Returns the selected value of the Scroller Pane.

Returns

  1. number The selected value.

setValue(value)

Changes the selected value.

Parameters

  1. value: number The new selected value.

getLimit()

Returns the limit relative to zero.

Returns

  1. number The limit.

hasMinusSpectrum()

Returns wether the Scroller Pane has the minus spectrum enabled.

Returns

  1. boolean Returns true if the minus spectrum is enabled as well.

toggleMinusSpectrum(state)

Enables or disables the minus spectrum.

Parameters

  1. state: boolean true for enabled minus spectrum, false for the opposite.

setLimit(limit)

Sets a new limit relative to zero. If the minus spectrum is enabled, the given limit then get's mirrored to the minus spectrum as well.

Parameters

  1. limit: number The new limit.
